• Workpiece: Tools with increasing and falling profile • Point and Geometry: Milling End Face like 1.1 Drills Point like 6.1 • Cutting Edge Combination: right helix/right cut left helix/left cut • Production / Regrinding: Production by different infeed (several steps) • Regrinding with calculation of removal length, periphery and rake. • Regrinding, finishing with different wheels • Profile: CAD-system for profile construction • Profile Element: Straight line Edge Convex / concave radius Chamfer Increasing / downgrade profile Free selectable sequence of the profile elements • Preparation: Separation (cut off) Profile roughing Profile finishing Straight polishing Corresponding to a defined blank profile • Main Fluting: Straight fluting Tapered fluting Spade drill fluting • Periphery: Linear relief: 1st/ 2nd /3rd relief angle Radial relief: 1st relief angle Cylindrical relief Raised land fluting Multi facet raised land fluting • Receding Profile: • Extension of profile including receding sections • Extension: Reading DXF-Format Reading an external created DXF- file Konverting into MTS-file-format autom. sorted elements autom. corrected sequence autom. corrected orientation Selecting the particular layer • DXF-Standard: AutoCAD Version 12 DXF-identification-code „AC1008“

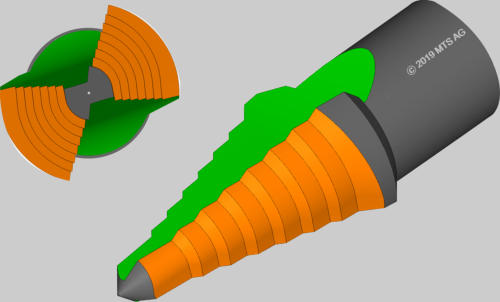

8.2 Multi Fluting Geometry

• Up to 5 flutings with separate definition • but common cutting edge • Tool 8010017

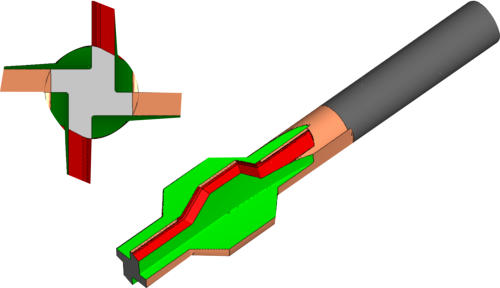

8.3 Radial Pheripery

• Radial periphery along discretionary sections • Special grinding procedure by radius wheel • Tool: 8020017

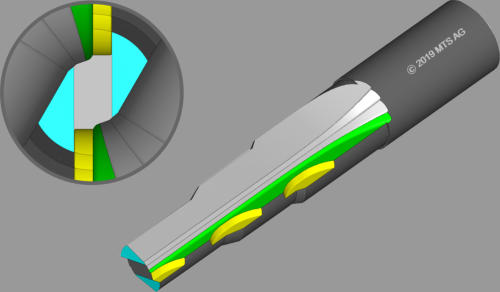

6.4 Multi Cutting Geometry

• Multi cutting tools with 2 Groups • In pairs different cut geometry • Tool 8030017
