4.1 Basic Side Milling Cutter (NMENU)

Galerie

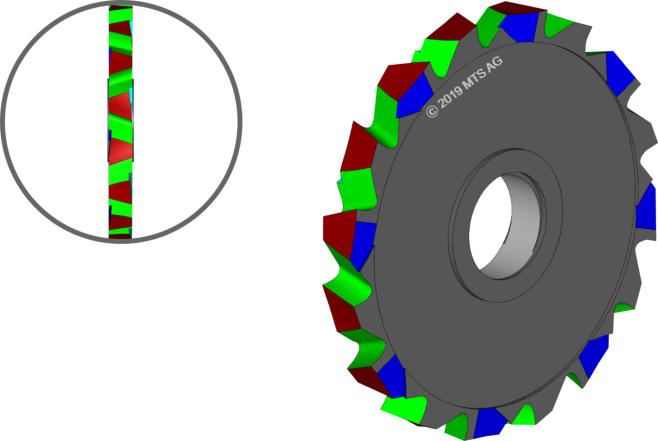

• Tool: 4010017 „cross-cut side milling cutter“ • Basic Modul

Galerie

• Specification „4.1 Basic modul Side Milling Cutter“ • Specification

• Workpiece: Cylinder Trapecoid Prisma Half Angle Full Radius End Faces: Plan Face Chamfer Corner Radius • Teeth: Standard teeth Staggered teeth Staggered/skipping teeth • Production / Regrinding Production by different infeed in several steps Regrinding with calculation of removal length, periphery and rake. Regrinding, finishing with different wheels • Main Fluting Meas. definition: Point-/ normal cut Grind direction: Forward / backward Optional spark out grinding • Periphery: Linear relief: 1st/ 2nd /3rd relief angle Radial relief: Cross-/ longitudinal Grind direction: Forward / backward Optional spark out grinding • Heel: Grind proc.: Crosswise-/ longitudinal Production by different infeed (several steps) Grind direction: Forward / backward Optional spark out grinding • Face Relief: like end mills • Gashing, front/rear: like end mills • Chamfer front/rear: like end mills
